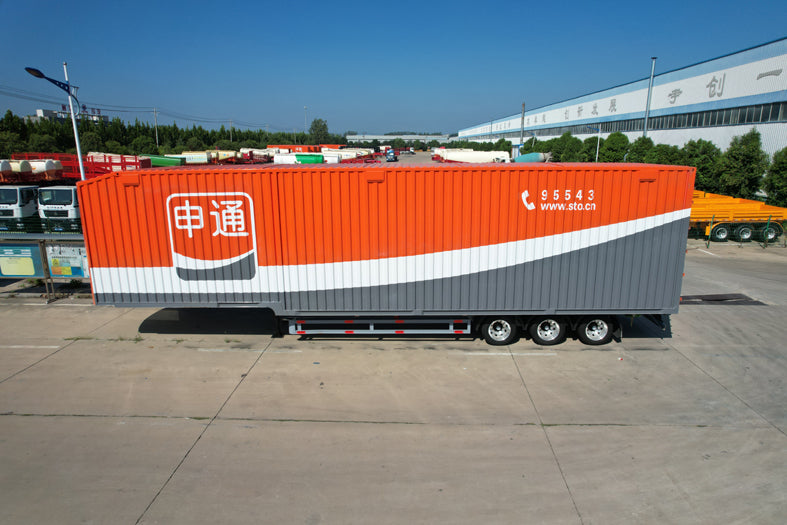

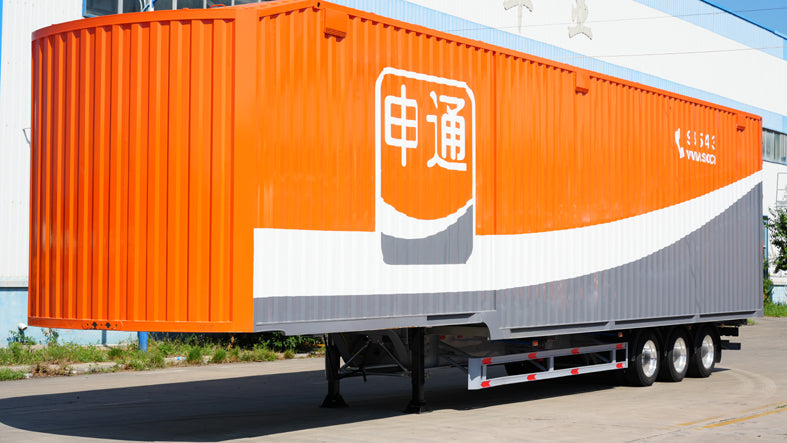

Box type transport semi-trailer

Dimensions: 137501350013000 × 2550 × 4000395039003850375036503450.


The dimensions of the cargo compartment are 136001335012850 × 249024702450240023802360 × 29502900285028002750270026002400.

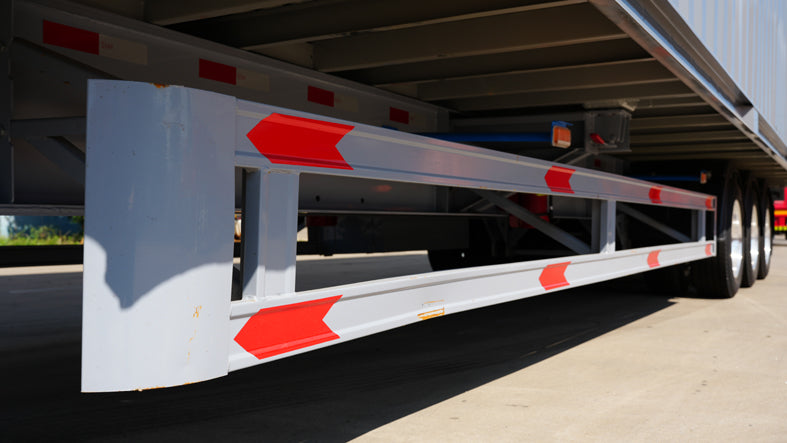

The top is closed and cannot be opened, with the option of installing a beam shaped hole structure; The optional combination light style is rectangular, the optional side door style and number of doors, the optional trunk style, the optional rear door style, and the optional front panel style. When the vehicle length (mm) is 1350013000, the front end of the vehicle is not chamfered; Both the side and rear protective devices are made of Q235B material. The connection between the side protective device and the vehicle is bolted, while the connection between the rear protective device and the vehicle is welded. The height of the rear protective device above the ground is 480mm, and the cross-sectional size is 140mm × 55mm. Optional air suspension is available, and the first axle of the optional vehicle is a non drive axle (follower axle), which can only be lifted under no-load conditions





1、 Core technological advantages


1. The enclosed compartment is designed with a fully enclosed structure, with a waterproof and dustproof rating of IP67 and comes standard with ABS+EBS braking system, ensuring safer transportation of goods






2. Lightweight and high-strength steel aluminum hybrid skeleton, with a weight reduction of 18% compared to traditional models (such as a 13.95-meter model with a weight of 7.2 tons). The high-strength steel anti-collision beam improves impact resistance by 30%






3. Intelligent configuration comes standard with tire pressure monitoring and backup camera, with optional temperature monitoring and anti-theft alarm system






Efficiency improvement plan with electric double door design, increasing loading and unloading efficiency by 50%. The internal net height is 2.8 meters, and the forklift can directly operate with a volume of 150 cubic meters, which is 20% more cargo than ordinary box trucks






Recommended Typical Configuration for Applicable Scenarios and Application Fields: Express Logistics, 13.95-meter standard box car, aluminum alloy floor+electric tarpaulin, cold chain transportation, refrigerated box car, polyurethane insulation layer+temperature control system, high-value cargo transportation, flying wing box car, hydraulic lifting side door+anti-theft alarm

The economic indicator load ratio reaches 1:5.5 (such as a vehicle with a total weight of 40 tons and a self weight of 7.2 tons). The fuel consumption per 100 kilometers is 12% lower than that of ordinary vehicles, and the 3-year residual value rate is about 75%
