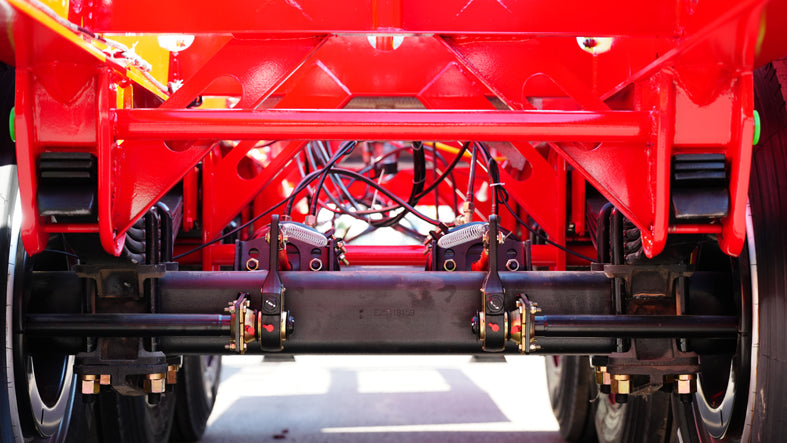

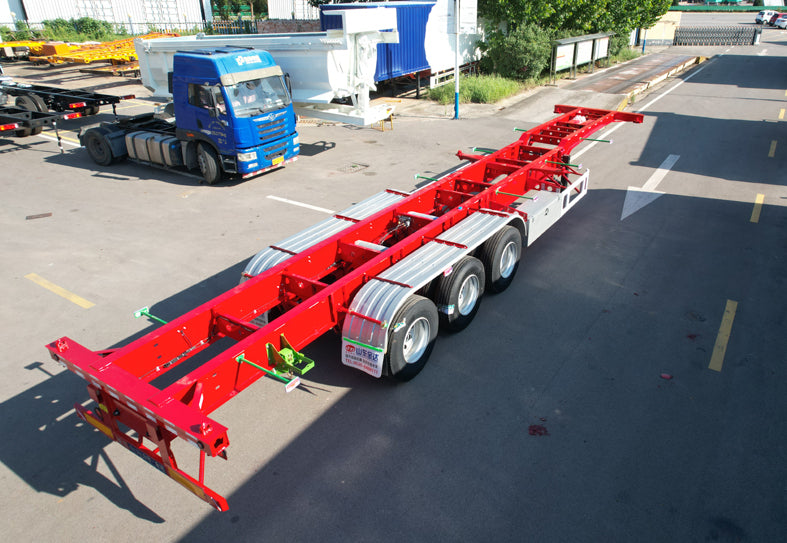

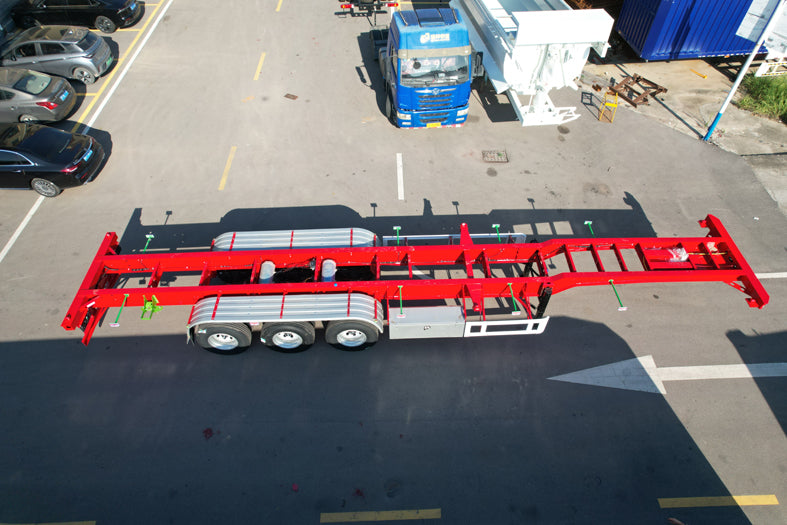

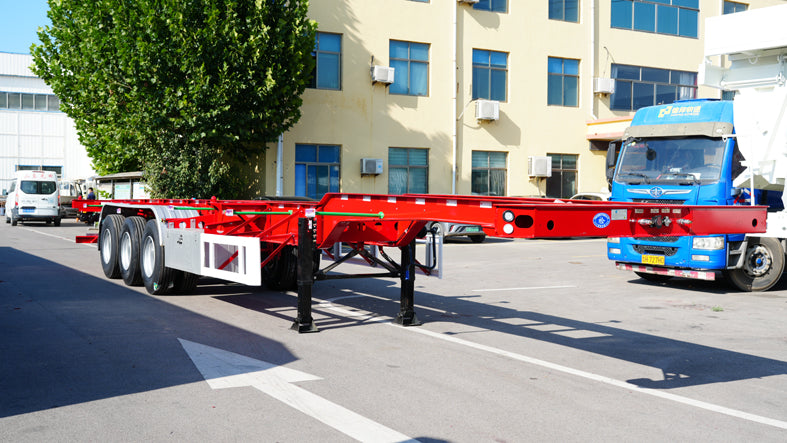

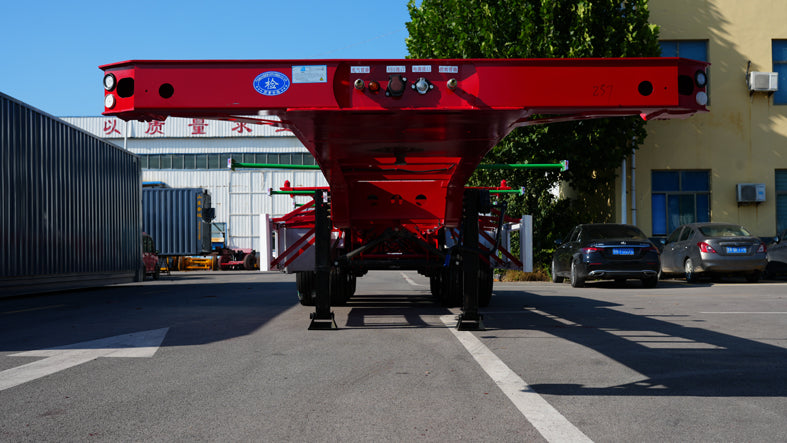

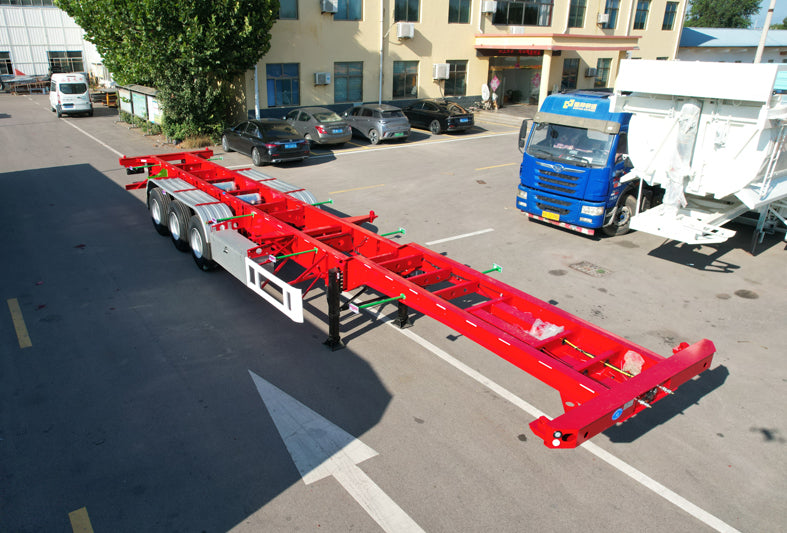

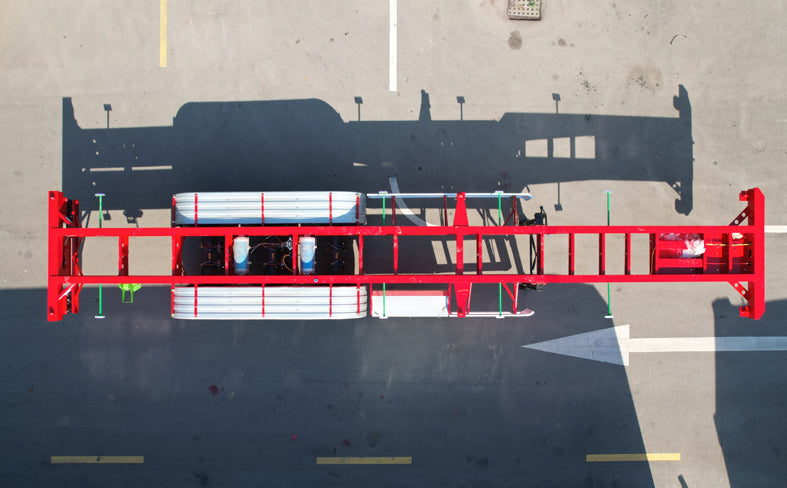

Container transport semi-trailer

Dimensions 13950 × 25002550 × 1450149015401580


This vehicle is used for transporting 45 foot 1EE containers; The frame height of the traction pin is 180mm, and the optional frame heights of the traction pin are 140mm, 160mm, 170mm, 190mm, 200mm, and 210mm; Optional front style, optional front facing block style, optional large beam shaped hole structure, optional installation position of tail sign board, optional license plate style, optional rear style, optional rectangular structure for rear combination lights/fog lights;

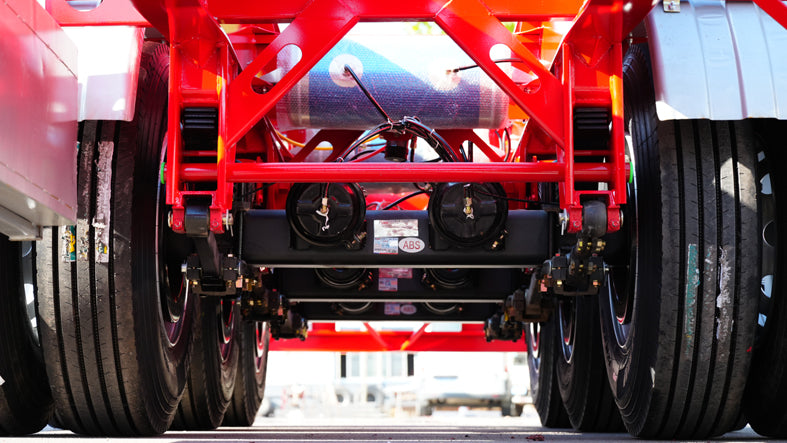

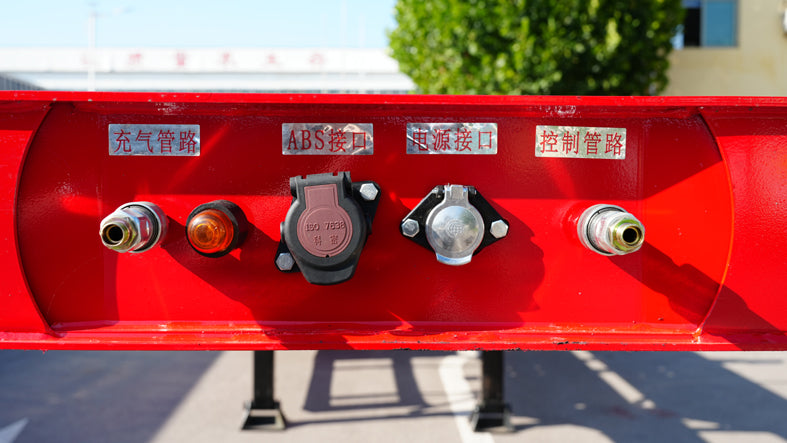

1、 ABS model: CM2XL-4S/2M; ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd;


2、 The side protection material is made of aluminum alloy, and the rear protection material is made of Q235. The side lower protection device is connected by bolts/the rear lower protection device is connected by welding. The cross-sectional size of the rear protection device is 140mmX45mm high, and the height above the ground is 460mm





1、 Core technological advantages


Lightweight design, high-strength steel+aluminum alloy hybrid structure, with a weight reduction of 18% compared to traditional models (such as the 13.95-meter model weighing 7.2 tons)


The loading efficiency has been improved, with a maximum capacity of 170 cubic meters (13.95-meter model), which is 26% higher than that of ordinary box cars


Standard container automatic locking device, reducing loading and unloading time by 40%






2、 Regional adaptation plan


Port/railway transportation 13.95-meter standard skeleton car compatible with 40 foot container, with hydraulic support legs


Express logistics 15 meter lightweight skeleton vehicle with a capacity of 120 cubic meters and a load capacity of 40 tons


After transporting engineering bulk cargo, the self dumping skeleton truck has a self dumping angle of 45 ° and a wear-resistant steel carriage






3、 Economic comparison


Operating cost: Fuel consumption per 100 kilometers is 12% lower than ordinary models (about 3L)


Investment return: Single vehicle load ratio of 1:5.5 (such as a vehicle with a total weight of 40 tons and a self weight of 7.2 tons)
