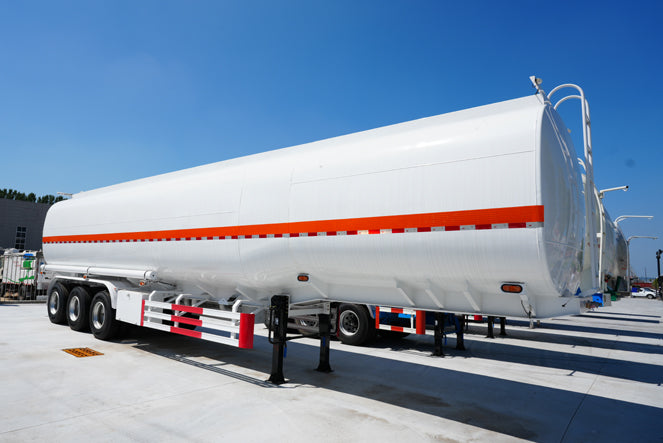

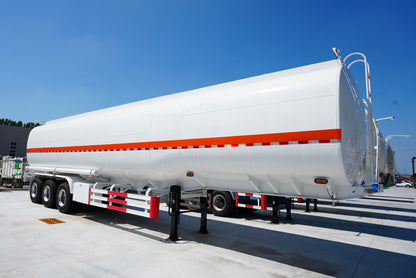

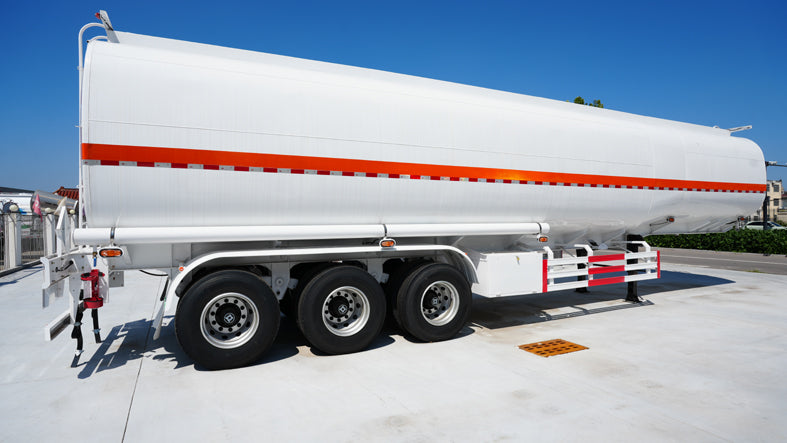

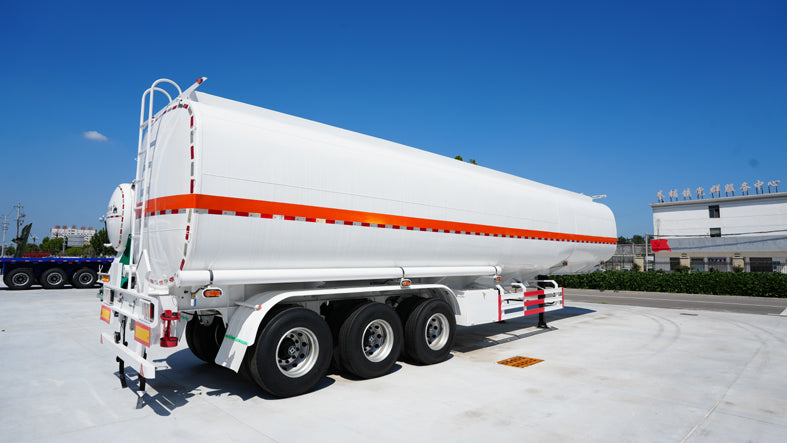

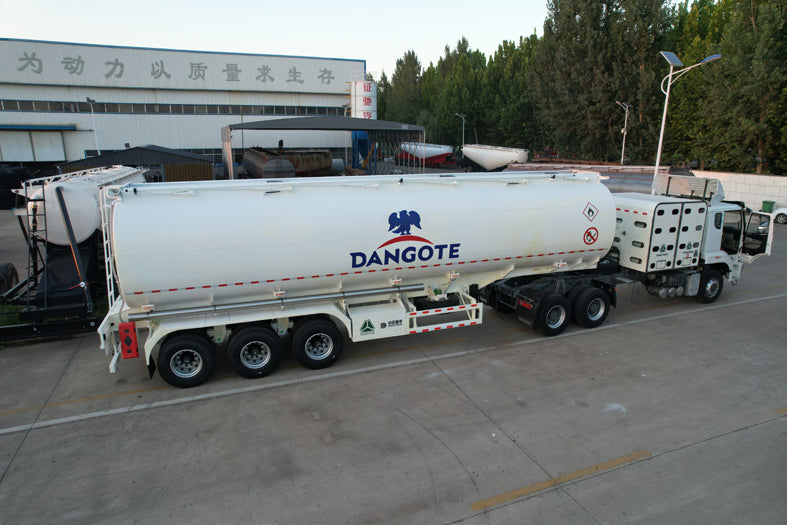

Flammable liquid tank transport semi-trailer

Dimensions 12680 × 2550 × 3950


This vehicle is a dangerous goods transport vehicle, using a tractor suitable for towing semi trailers for transporting dangerous goods The vehicle type for transporting dangerous goods is FL type Total tank capacity: 48.8 cubic meters; Effective volume of tank: 46.3 cubic meters, maximum density of quasi transport medium: 702 kilograms per cubic meter; Dimensions of the tank body (length x diameter) (mm): 12207 x front diameter 2150/rear diameter 2350

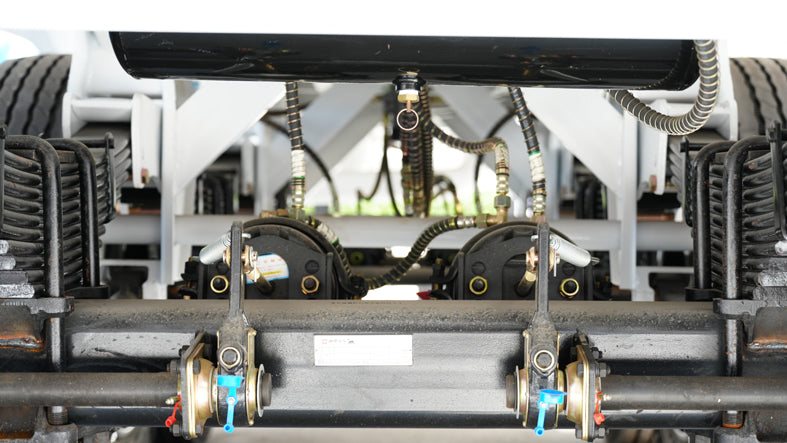

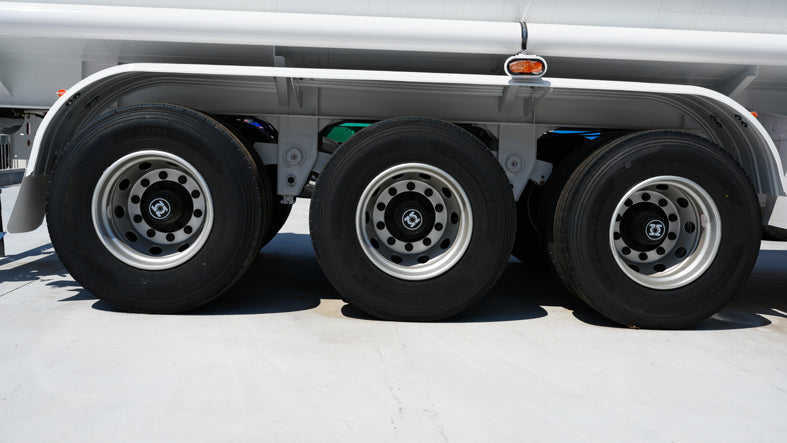

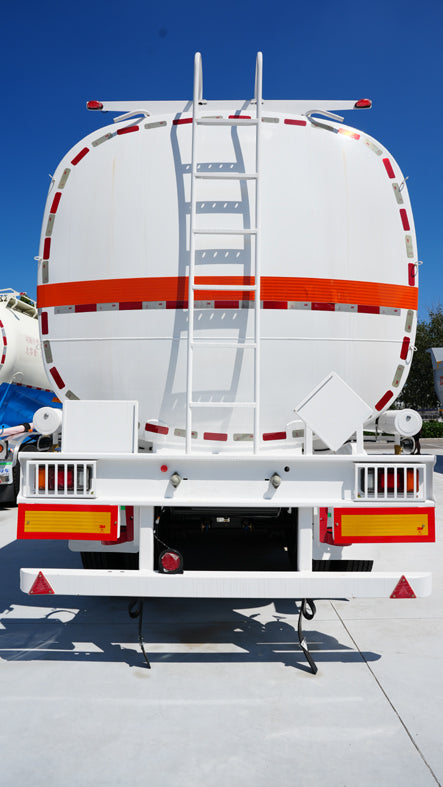

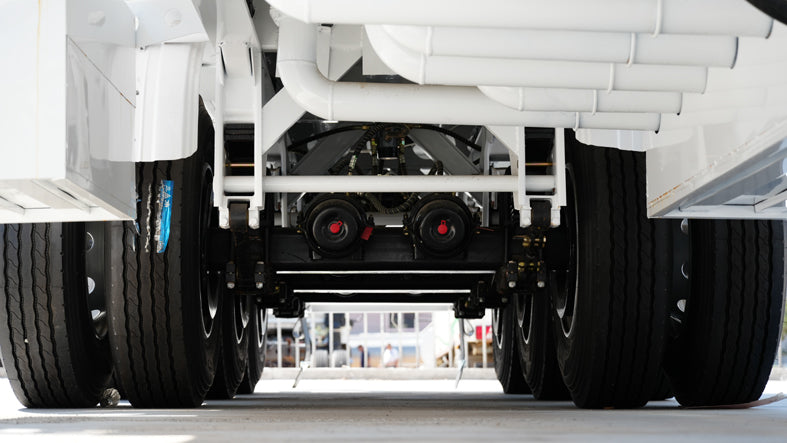

EBS manufacturer: Shandong Liangshan Delphi Automotive Technology Co., Ltd; Guangzhou Ruili Kemi Automotive Electronics Co., Ltd; WABCO Automotive Control Systems (China) Co., Ltd; EBS system controller model: EBD (brake force distribution)+4S/4M control system+Delphi EBS safety management system; CM-TEBS; 4801020640; The material of the side and lower rear protective devices is aluminum alloy 5083, and the connection method is bolt connection; The cross-sectional size of the rear lower protective device is 140 × 55mm, with a ground clearance of 480mm; the vehicle is equipped with air suspension and radial tires are used Optional tank top guardrail, walkway style, and optional number of feeding ports Optional fire extinguisher style and installation location Optional rectangular sign installation position





Core technological advantages


1. Safety design of two-stage stainless steel tank body: reduces circumferential welds and increases strength by 30%. Dual safety system: EBS brake+anti overflow protection device. Standard anti-static device+emergency shut-off valve

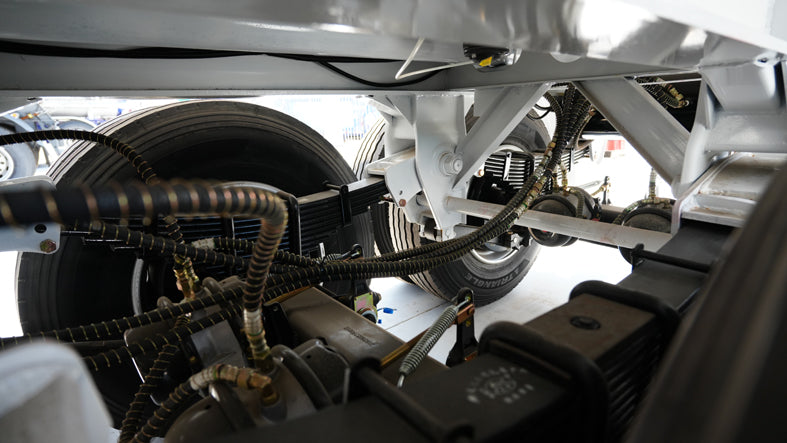

2. Lightweight and efficient aluminum alloy/stainless steel hybrid structure, with a weight 25% lighter than carbon steel models. The air suspension system is suitable for complex road conditions






Typical Configuration for Adaptation Scenarios and Application Fields


Dual warehouse design for refined oil transportation+anti-corrosion coating


Chemical raw material distribution with stainless steel liner and temperature control system


Multi medium transportation, multi warehouse, independent tank body+anti mixing device


The economic index has a load ratio of 1:5 (such as a vehicle with a weight of 8 tons and a load capacity of 40 tons), and the fuel consumption per 100 kilometers is 18% lower than that of ordinary tank trucks. The 3-year residual value rate is about 65%
