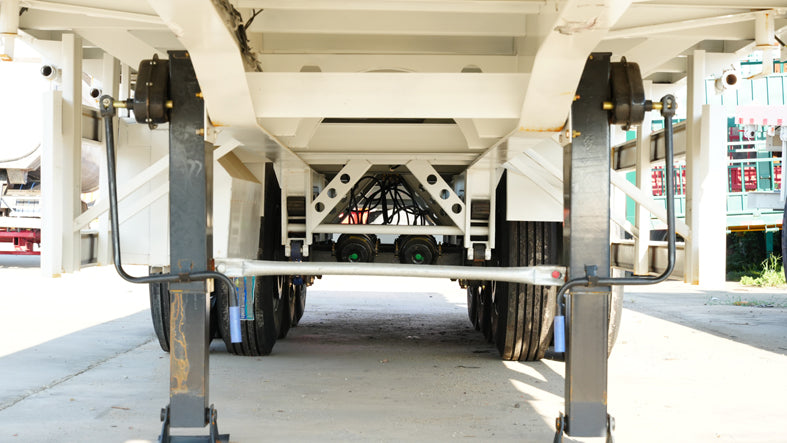

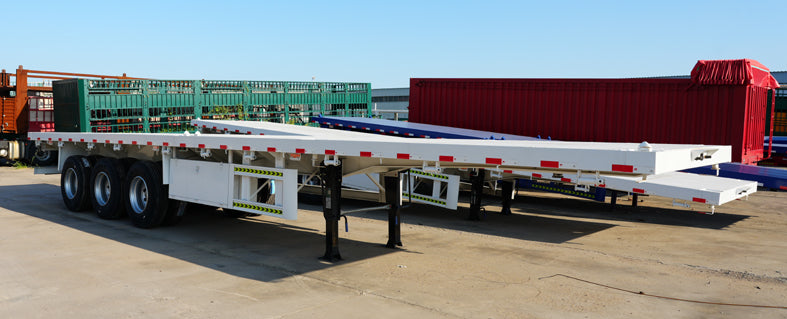

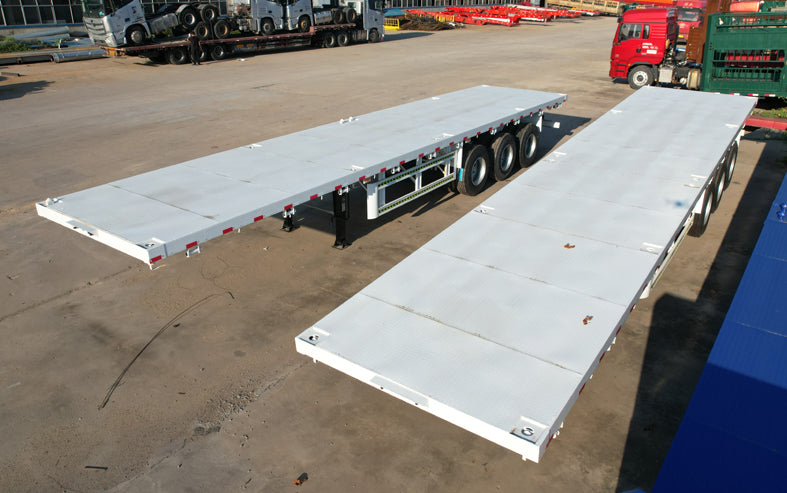

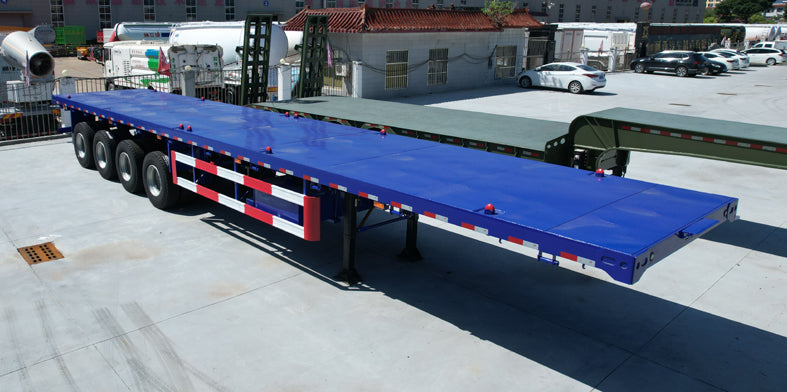

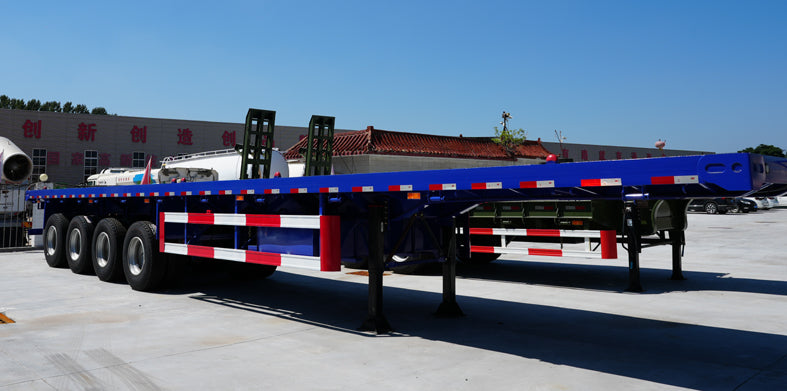

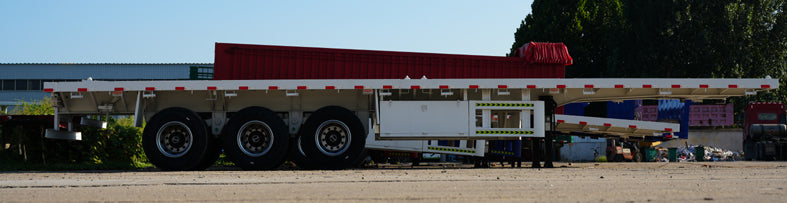

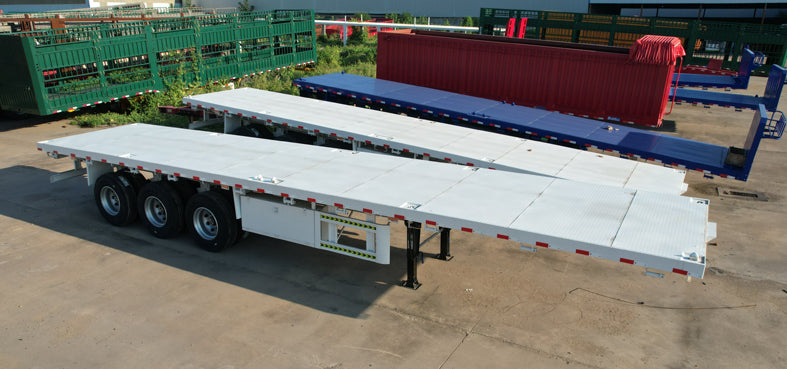

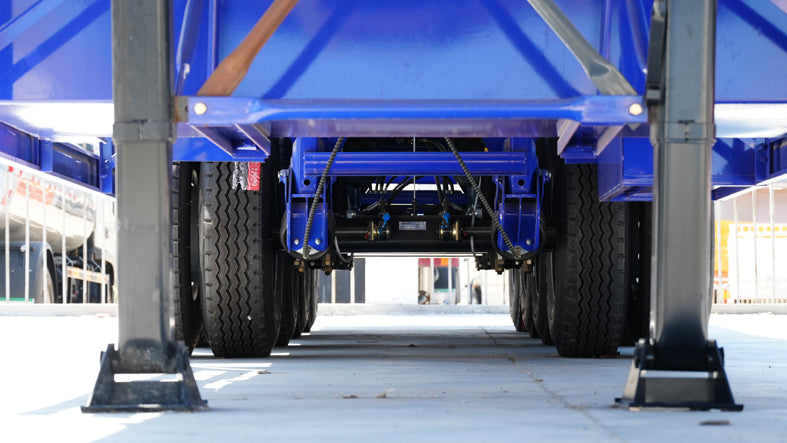

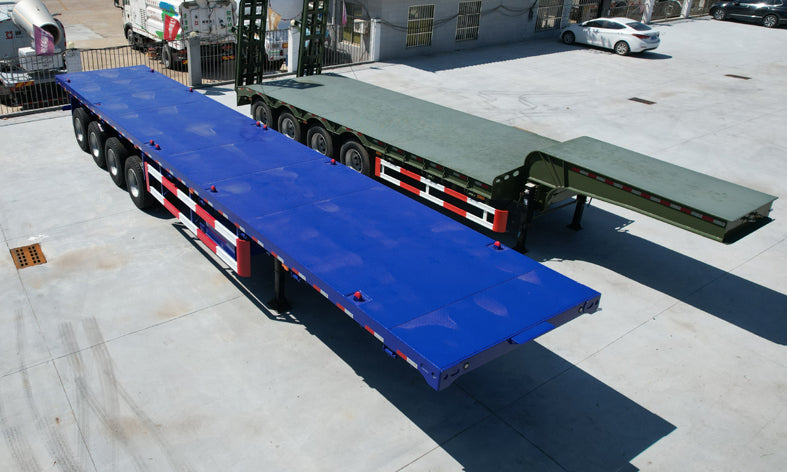

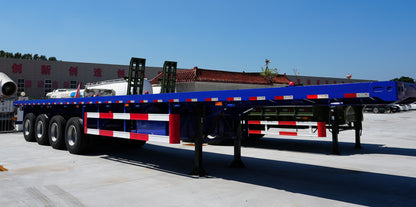

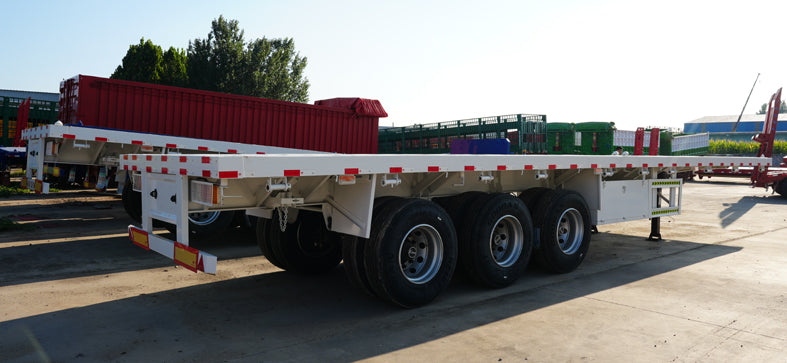

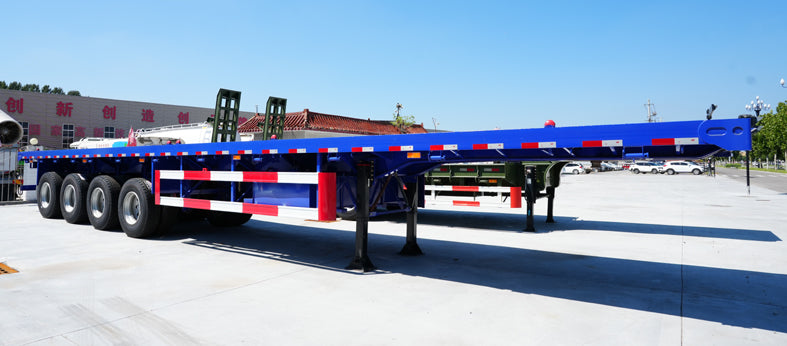

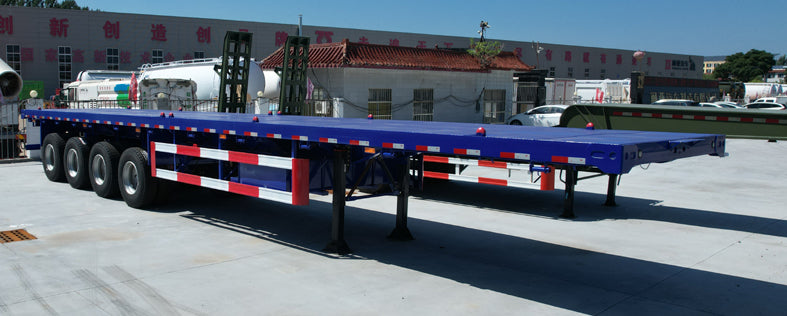

Heavy duty flatbed transport semi-trailer

The external dimensions are 1300012500 × 2550 × 1490153015501580165021502750.

The car does not come with a front gear option, but instead comes with a front gear plate style and side guard style; Optional large beam punch shaped holes and rear style; Optional installation of tarpaulin frame and ladder in the front gear, and no tarpaulin frame or ladder installed; The optional combination lights and fog lights can be circular in shape; The material used for the side and rear protective devices is Q235B, both connected by electric welding. The cross-sectional size of the rear protection (mm) is 140 × 50, and the ground clearance is 470mm. The ABS system manufacturers are Shandong Haina Automotive Technology Co., Ltd., Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., and Weibo (Shanghai) Management Co., Ltd.


1、 Core technological advantages

High strength structural design

Adopting Baosteel HG785D high-strength steel (tensile strength ≥ 785MPa), with a beam thickness of 500mm, wing plates of 14-18mm, and web plates of 6-10mm

Robot welding process, with weld strength reaching 95% of the base material

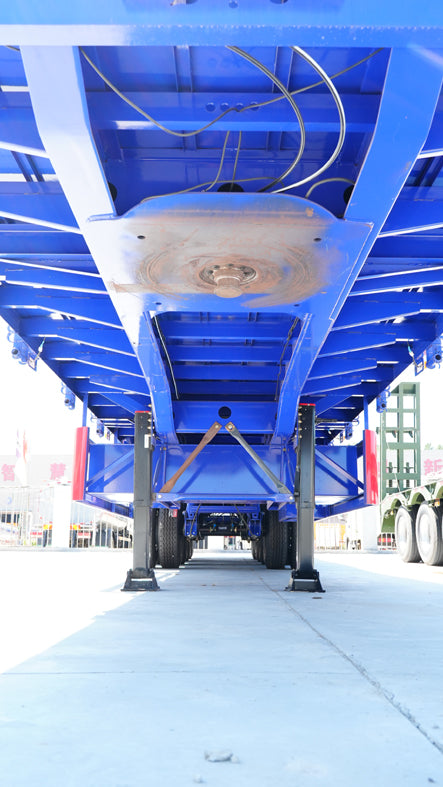

Multi longitudinal beam structure, bearing capacity of 80-150 tons

Low center of gravity stability, ground clearance height ≤ 1.5 meters (some models as low as 0.8 meters), and the critical angle for lateral overturning has been raised to 35 °. Optional hydraulic lifting platform, suitable for oversized goods such as wind turbine towers


2、 Key configuration highlights

Advantages of Configuration Items Explanation

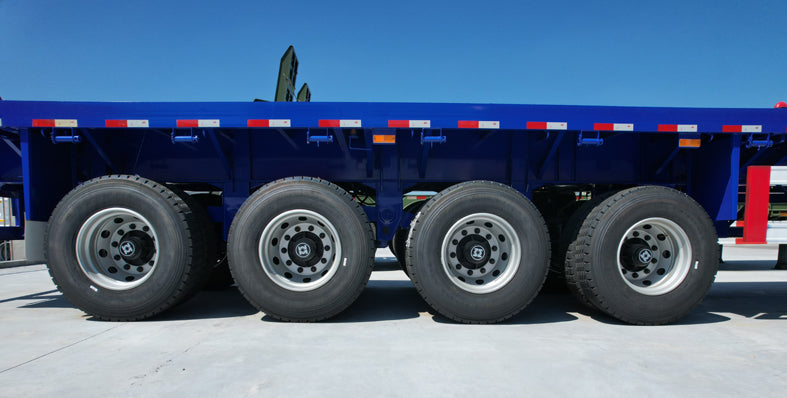

Axle Guangdong Fuhua 16 ton class axle (standard with 12 12R22.5 steel wire tires)

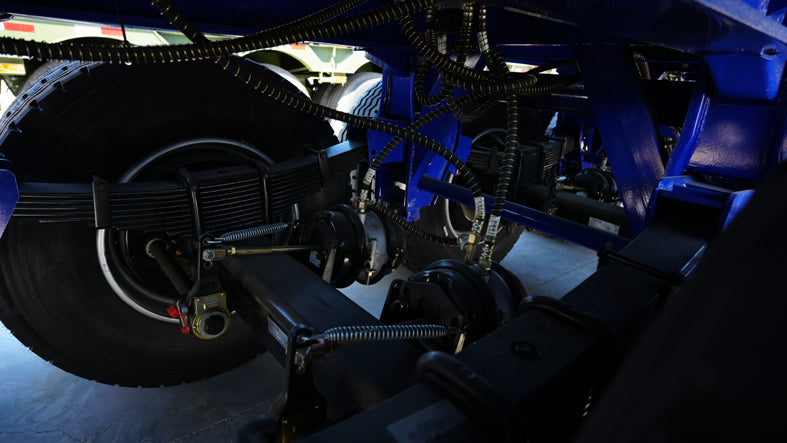

Suspension system steel plate spring/air suspension optional

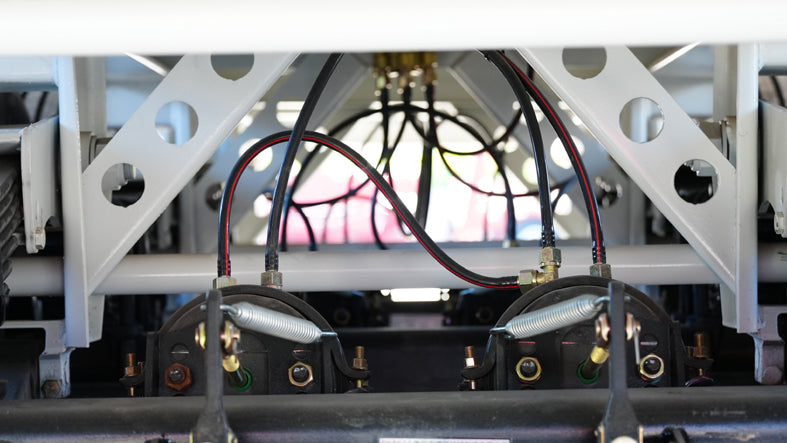

Braking system dual circuit air brake+ABS+EBS

The ladder design is hydraulic driven and detachable, increasing loading and unloading efficiency by 60%

Support non-standard customization


3、 Adaptation scenario

Typical configurations in application fields

Mine/Engineering 13 meter standard type with hydraulic ladder

Wind power equipment transportation 17.5-meter pull-out+all wheel steering system

Oversized large item transportation goose neck separation type, with a load capacity of 120 tons

4、 Economic indicators

Load ratio of 1:8 (such as a vehicle with a self weight of 8 tons and a load capacity of 60 tons)

The 3-year residual value rate is about 65%.
