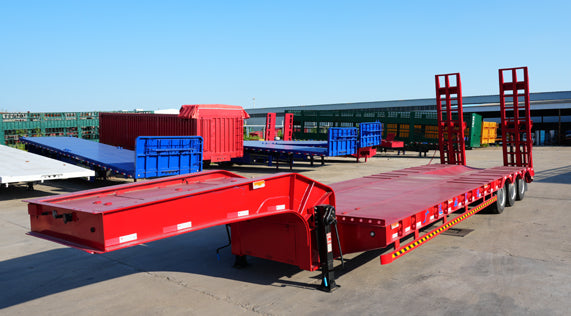

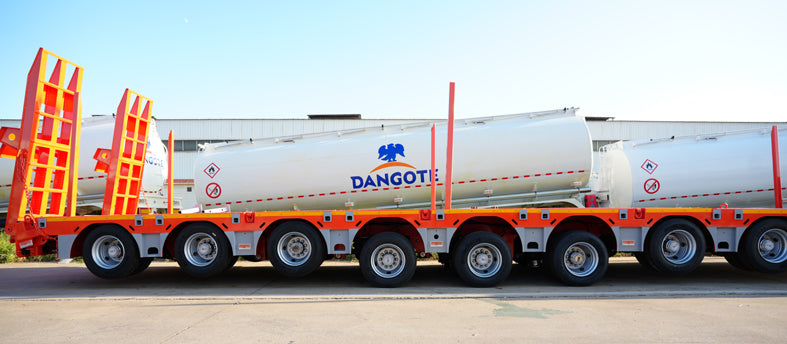

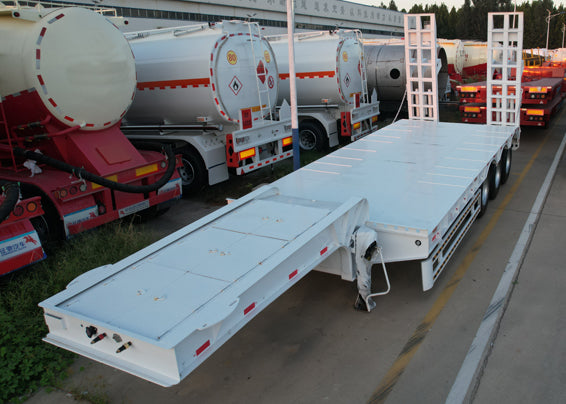

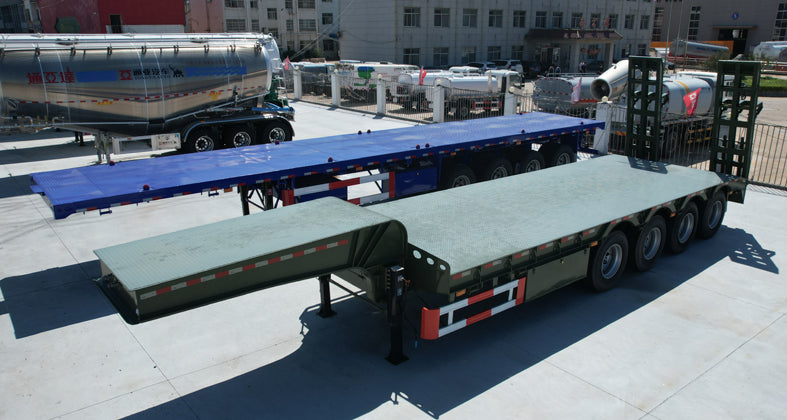

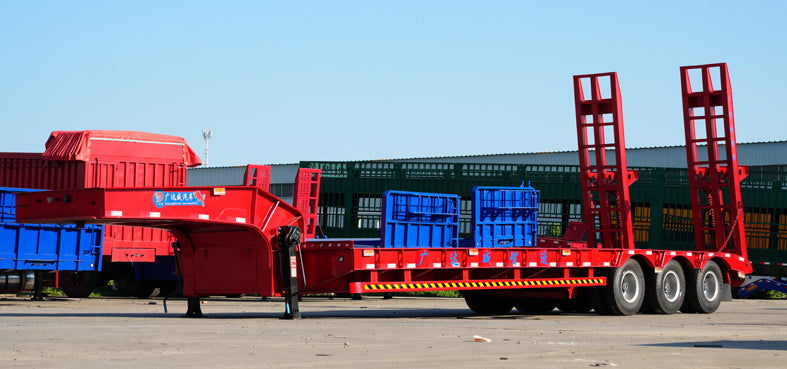

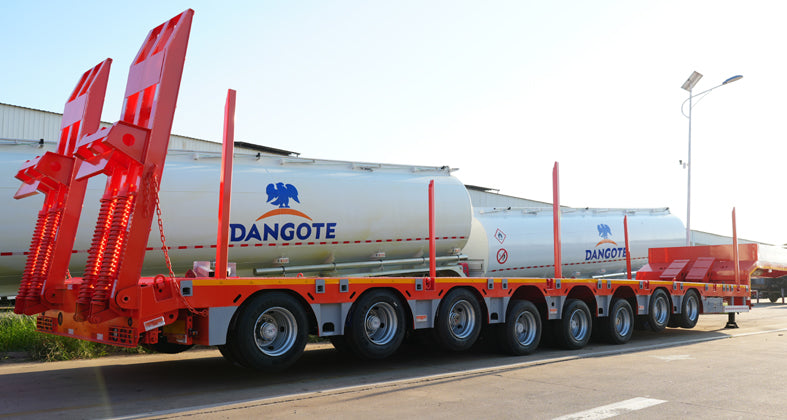

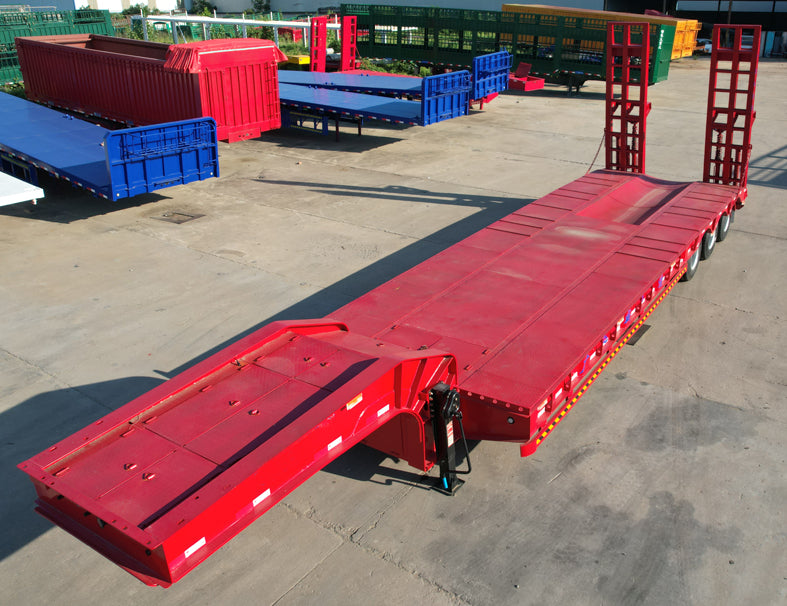

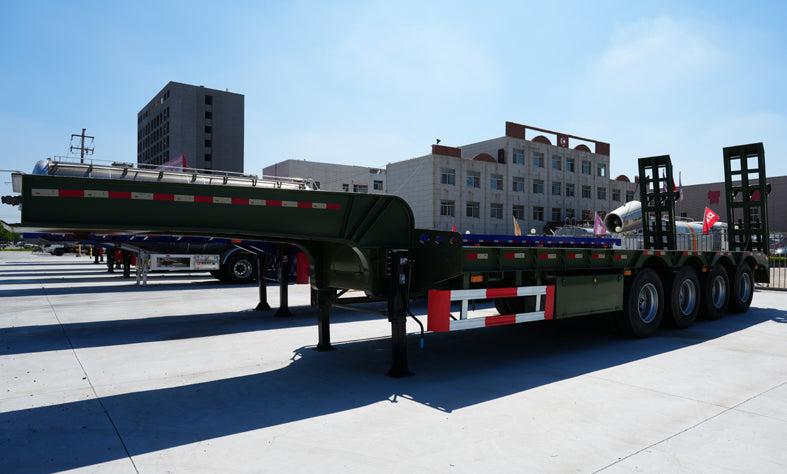

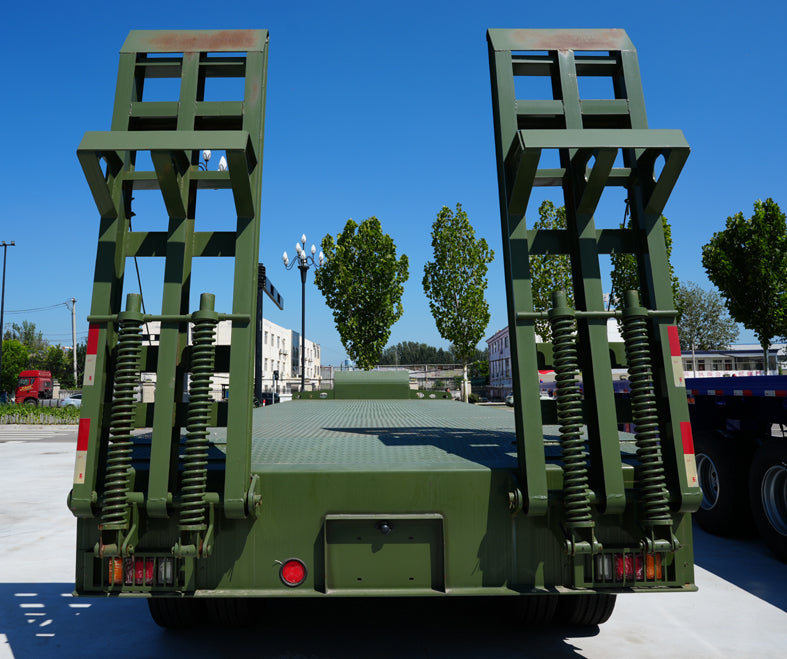

Heavy duty low flatbed transport semi-trailer

Dimensions: 137501299012500 × 30002800 × 16201700310033003500.


1.Only non disassemblable items can be transported, and the gooseneck part is not allowed to carry goods; The maximum width of the goose neck is 2090mm, and optional goose neck widths are 1350mm, 1420mm, 1450mm, 1500mm, 1800mm, 1200mm, 1380mm, 1480mm. The height of the cargo platform bearing surface (in millimeters) is 6507007508008509009301050. When the height of the cargo platform is less than the tire diameter, a high-low height structure is used, and when the height of the cargo platform is greater than the tire diameter, a high-low height or height structure is used;




2. Optional without ladder, the vehicle height without ladder is (mm) 16201700;


3. Optional rear taillight style and rear fog light style, with a movable tire cover plate. Remove the rear tires and expose them; Optional cargo countertop style; Optional ladder style; Optional gooseneck style;




4. ABS: Model: HNABS4S/4M; Manufacturer: Liangshan Haina Electronic Technology Development Co., Ltd;

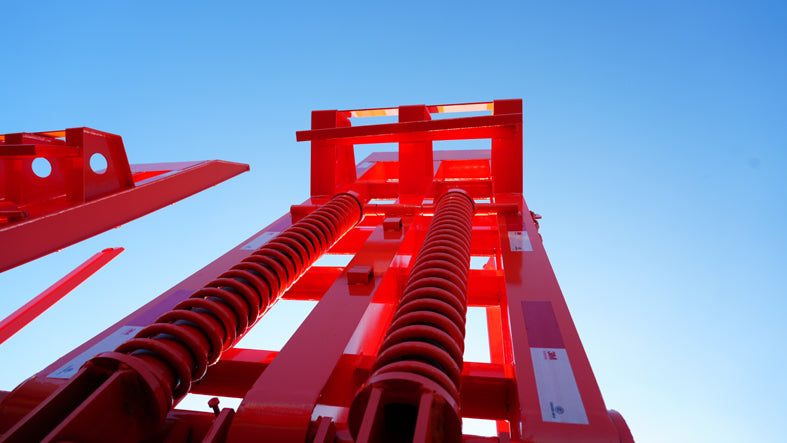

5. The material used for the side protection device is Q235B, and the connection method between the side rear protection and the frame is welding. The rear protection device is replaced with vehicle components, and the ground clearance height is 380mm. Optional vehicle side style is available; Optional rear style, optional simple support feet, rear spring assisted climbing ladder can be equipped with single spring, double spring, or three row spring. When the climbing ladder is assisted by a hydraulic cylinder, a hydraulic cylinder or a combination of a single spring and a hydraulic cylinder can be selected; Optional sloping style/right angle style/large arc style for the upper part of the goose neck; The cargo platform can be equipped with a flat style and a concave style in the middle; The tire platform can be equipped with frame and bottom plate options.

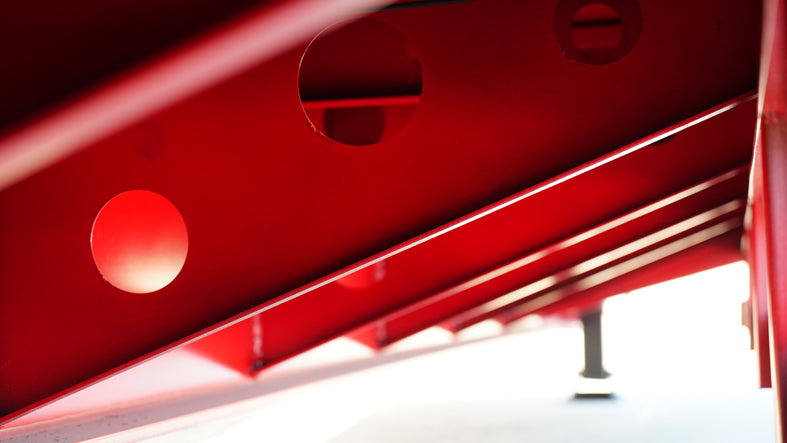

Core technological advantage 1 The ultra strong load-bearing design adopts high-strength steel, with a beam thickness of up to 500mm, upper wing plate 14-16mm, lower wing plate 16-18mm, and web plate 6-10mm. The multi axis design has a load-bearing capacity of 30-200 tons and is suitable for transporting low slab structures of large equipment. The center of gravity height is ≤ 1.5 meters and the stability is strong

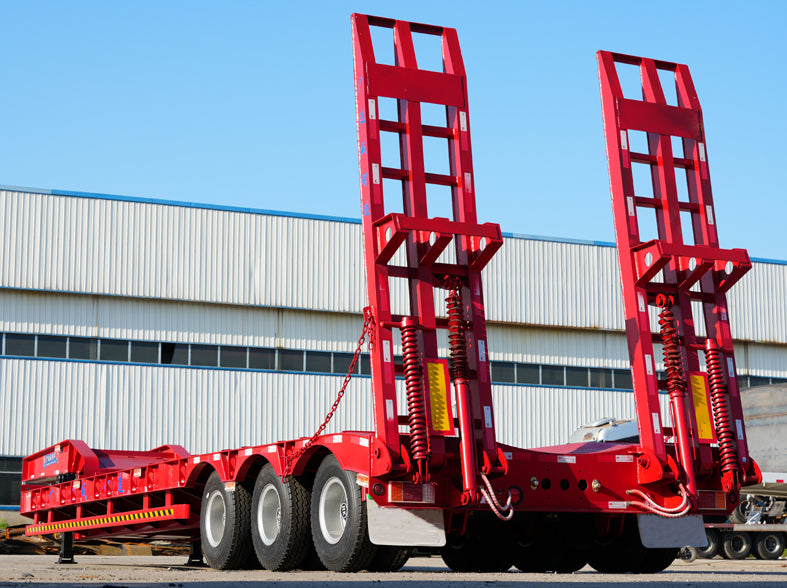

2. Flexible loading and unloading configuration of hydraulic ladder or adjustable tailboard, convenient for multi support points up and down of construction machinery, suitable for complex terrain

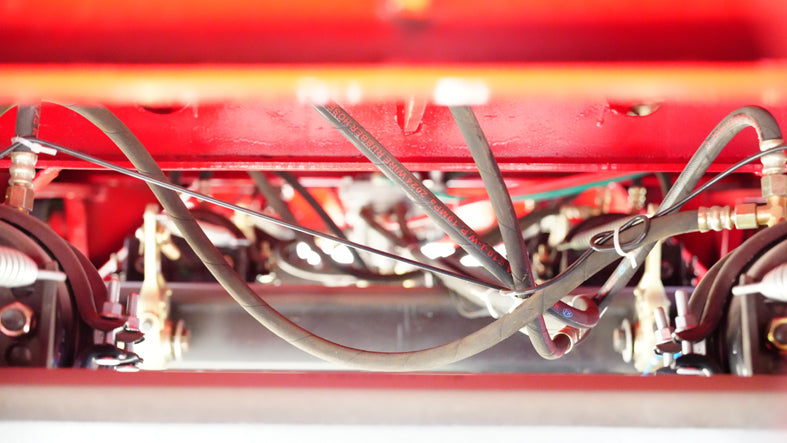

3. Safety assurance comes standard with ABS+EBS braking system and multi axis balance design, with strong anti rollover ability


Key performance parameters


Vehicle weight range and self weight dimensions (length x width x height)


Standard 60-80 tons 7-8 tons 13000 × 3000 × 1700mm


Widening type 80-120 tons 8-10 tons 16000 × 3000 × 1700mm


Typical Configuration for Adaptation Scenarios and Application Fields


Mining/engineering 80 ton vehicle with hydraulic ladder


Wind power equipment transportation 16 meter extended type, multi support point support


Steel/Machinery Manufacturing 13 meter Standard Type, High Strength Frame


The economic indicator load ratio reaches 1:8 (such as a vehicle weighing 8 tons and carrying 60 tons), and the 3-year residual value rate is about 60%. Support non-standard customization (such as five axle models, seven axle models, and multi axle models that can be customized)
