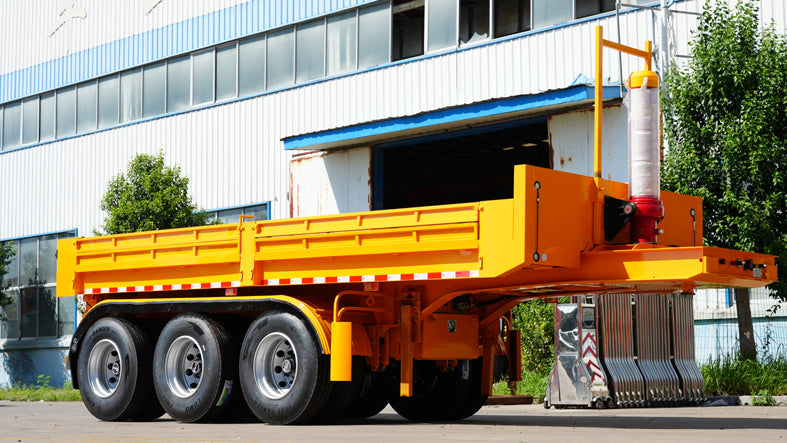

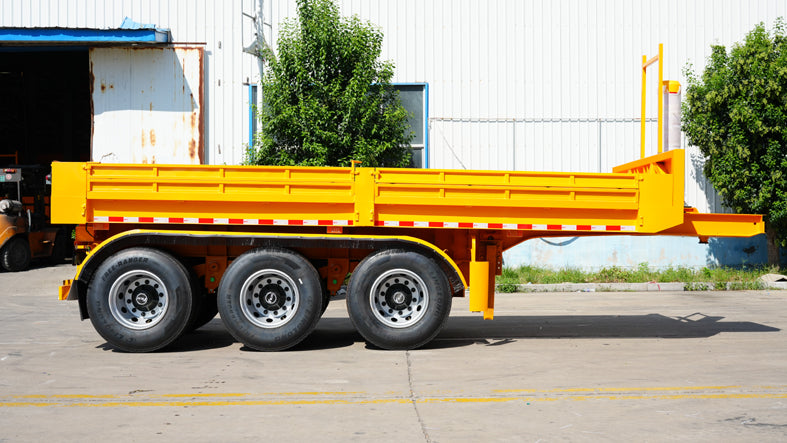

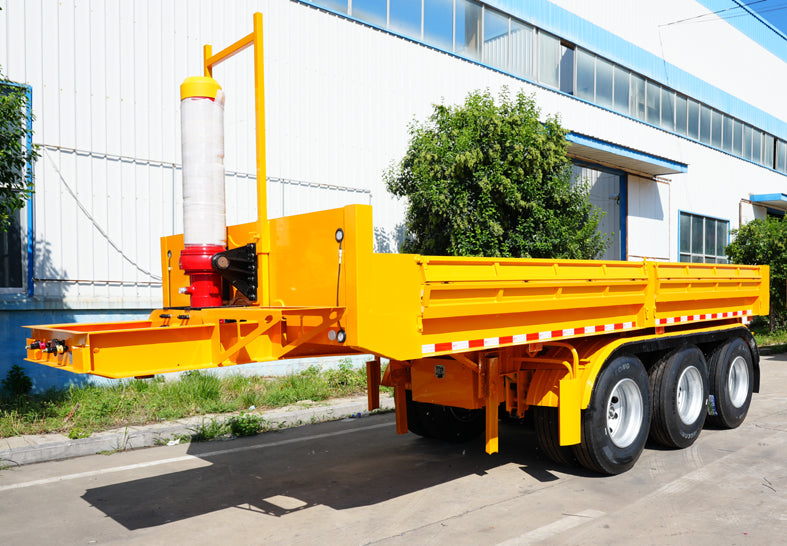

Heavy duty rear dump semi-trailer

Dimensions: 10300102001000009800 × 2550 × 3950375036503550335030503850345032503150

Cargo box size: 905089508758550 × 240023502300 × 24002000180015002300220020019001600

The export U-shaped dump truck is a vehicle designed specifically to meet the needs of bulk cargo transportation in international trade, characterized by high efficiency, safety, and strong adaptability. The following are its main features and uses:

Features:

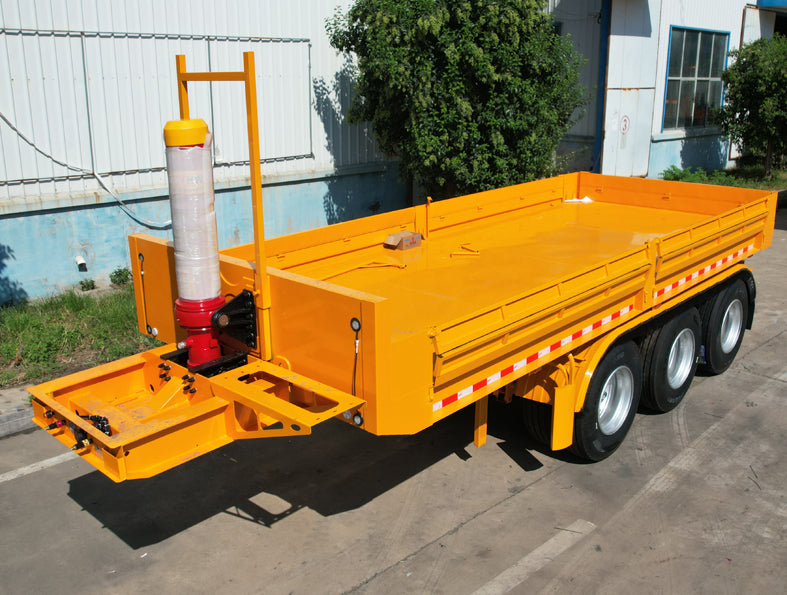

Container design: U-shaped container structure, usually made of high-strength wear-resistant materials, reduces cargo residue and improves unloading efficiency. Some car models have the rear of the cargo box tilted upwards to further optimize the unloading effect.

Load capacity: The loading weight is usually over 40 tons, and some vehicle models can reach up to 60 tons, suitable for large-scale bulk cargo transportation.

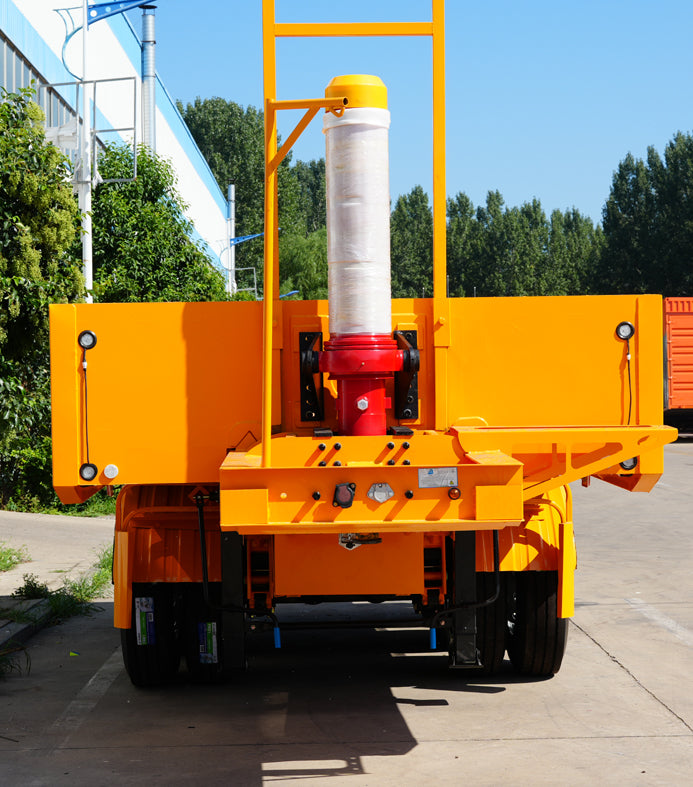

Lifting System: Equipped with high-performance lifting cylinders to ensure smooth and safe unloading of goods, some models use well-known brand cylinders to enhance reliability.

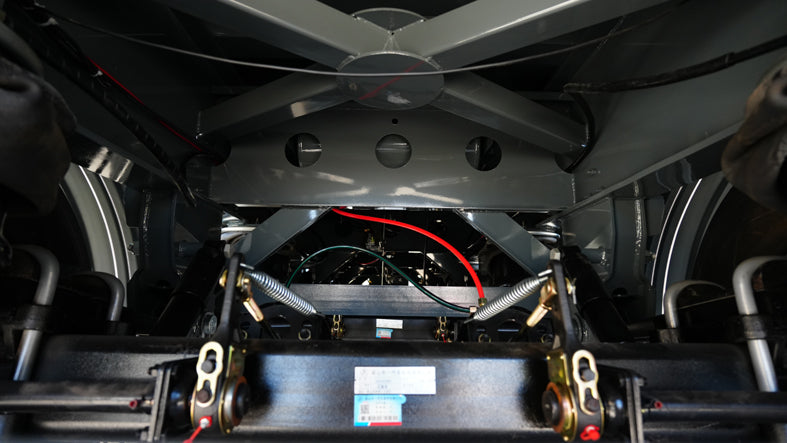

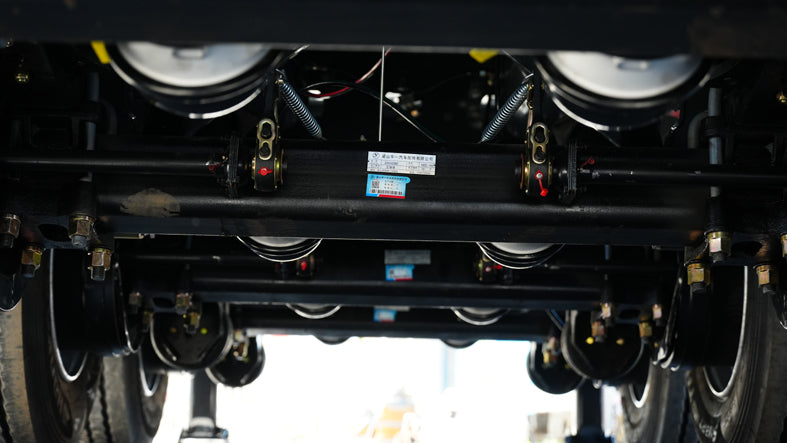

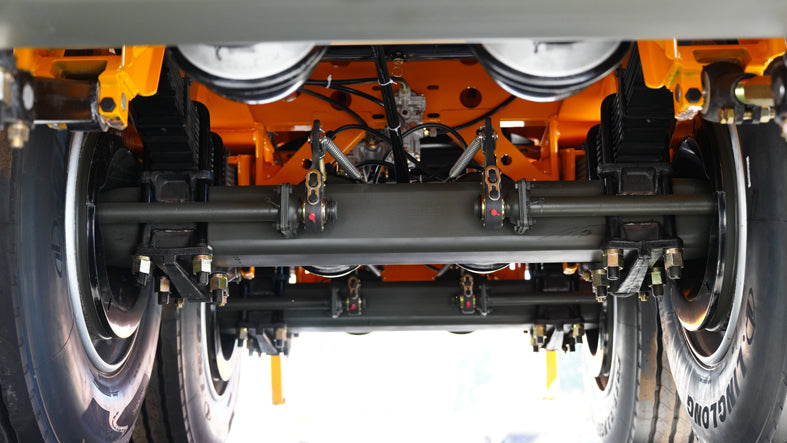

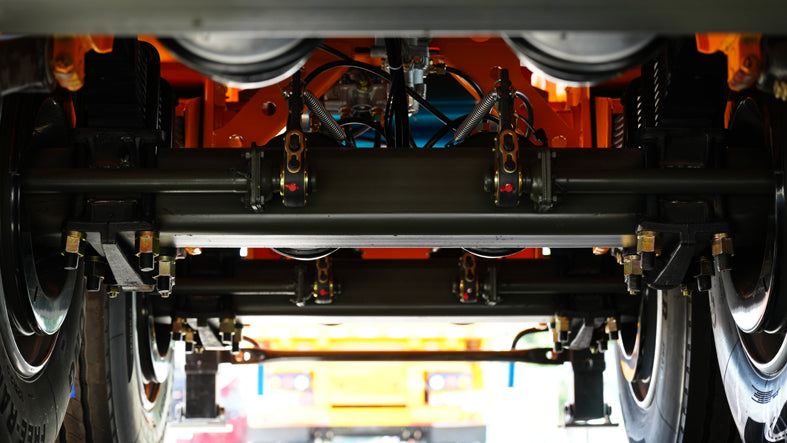

Suspension system: Common configurations include air suspension system or steel plate suspension system. Some models use airbag lift design on the front axle to adapt to different road conditions and load capacities.

Supporting components: High end accessories such as BPW suspension, disc brake, aluminum alloy steel ring, and Jost support legs are used to enhance vehicle performance and safety.

Additional configuration: Manual or electric tarpaulin can be optionally installed to prevent cargo scattering and dust pollution, and meet environmental protection requirements.

Purpose:

Transport goods: mainly used for the transportation of bulk goods such as coal, ore, and building materials.

Geographic adaptation: Suitable for complex terrains and diverse climate conditions in Central Asia, Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, and the Middle East.

Industry application: Widely used in mining, engineering construction, logistics transportation and other fields to meet the needs of efficient loading and unloading and transportation.

Export markets:

The main markets for exporting U-shaped dump trucks include Central Asia, Africa, Europe, South America, Southeast Asia, North America, and the Middle East. These regions have a strong demand for bulk cargo transportation vehicles, especially in places such as coal mines in Central Asia, where vehicles need to adapt to complex terrain and diverse climate conditions.

1、 Technical core advantages

1. The U-shaped body design adopts Baosteel HG785 high-strength steel (yield strength ≥ 785MPa), with a thickness of 8-10mm and a center of gravity as low as 1.3-1.4 meters. The anti rollover ability is increased by 40%, and the effective volume is increased by 30% compared to ordinary dump trucks (such as 40 cubic meters for 9-meter models)

2、 Key configuration highlights and advantages of configuration items

Axle Guangdong Fuhua 13-16 ton class axle (standard 12R22.5 steel wire tire)

Suspension system steel plate spring/air suspension optional

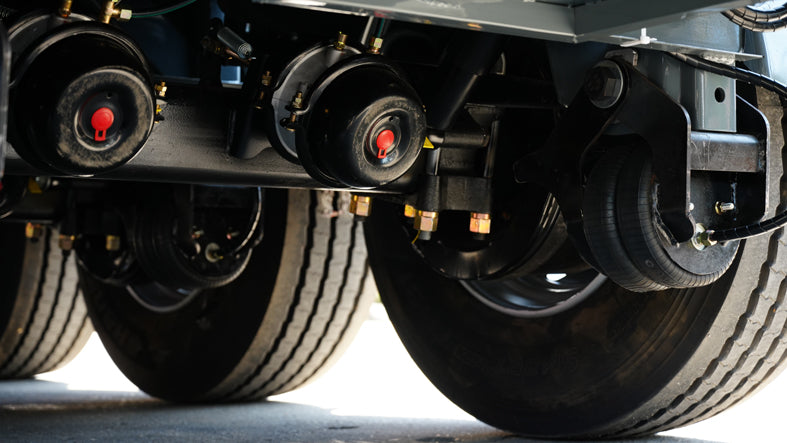

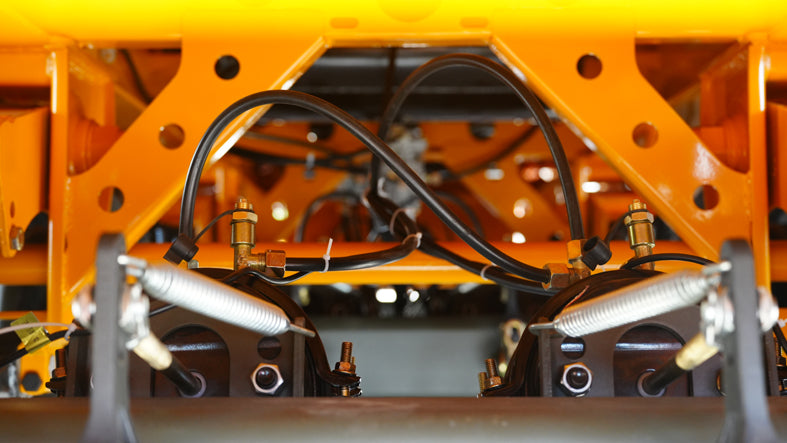

Braking system dual circuit air brake+ABS+EBS

Oil cylinder brand Haiwo/well-known domestic brand (1-year warranty)

3、 Adapt to typical configurations of target markets in export scenarios

Africa/Southeast Asia 9-meter standard type+wear-resistant coating

Middle East/South America 10.5-meter extended type+anti-corrosion treatment

Transportation of 12mm manganese steel bottom plate+pneumatic cleaning device in mining area

4、 The economic indicator load ratio reaches 1:5 (such as a vehicle weighing 8 tons and carrying 40 tons), with a 3-year residual value rate of about 65%.
