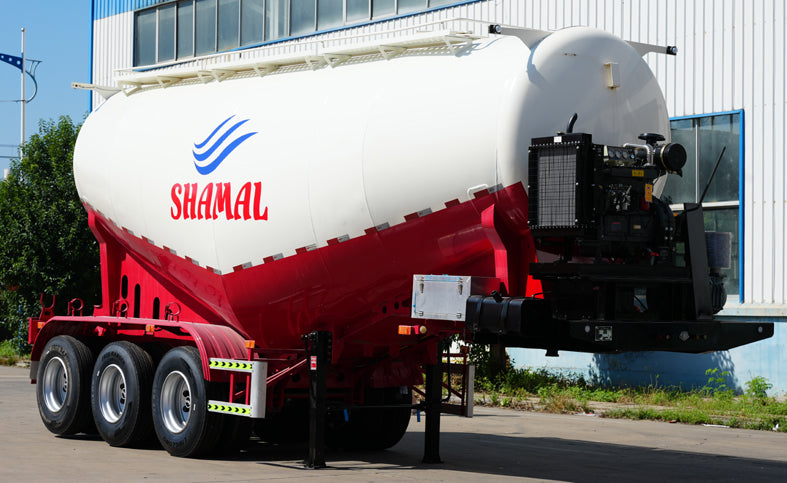

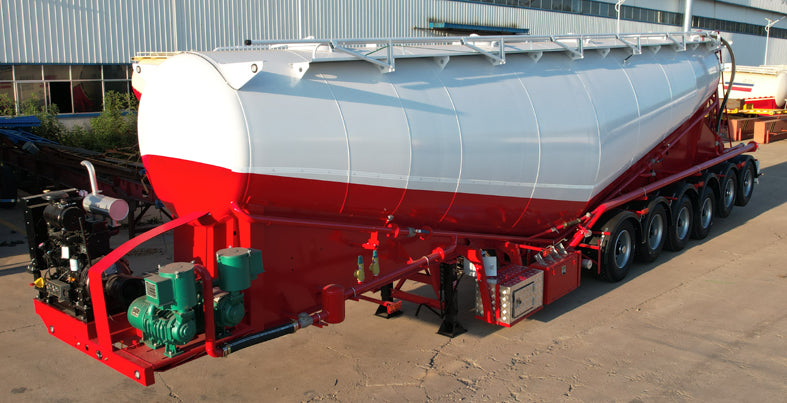

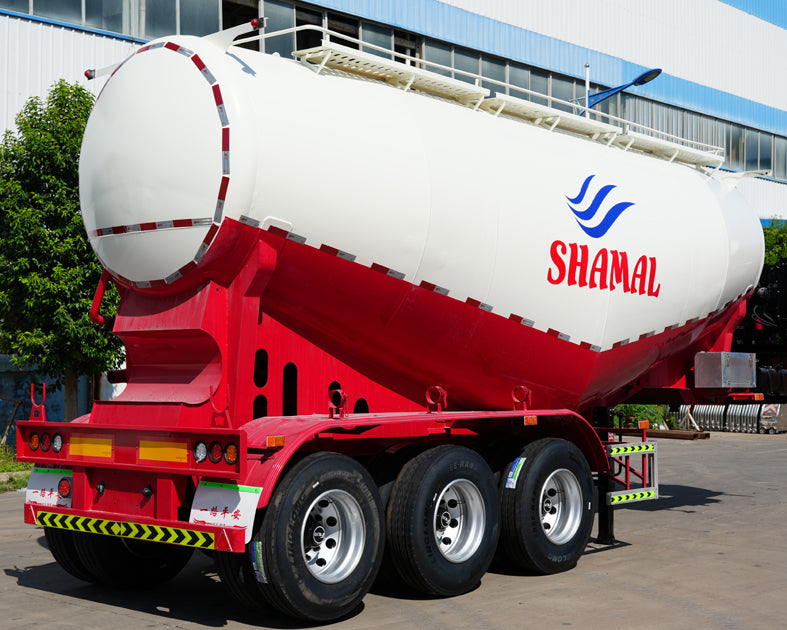

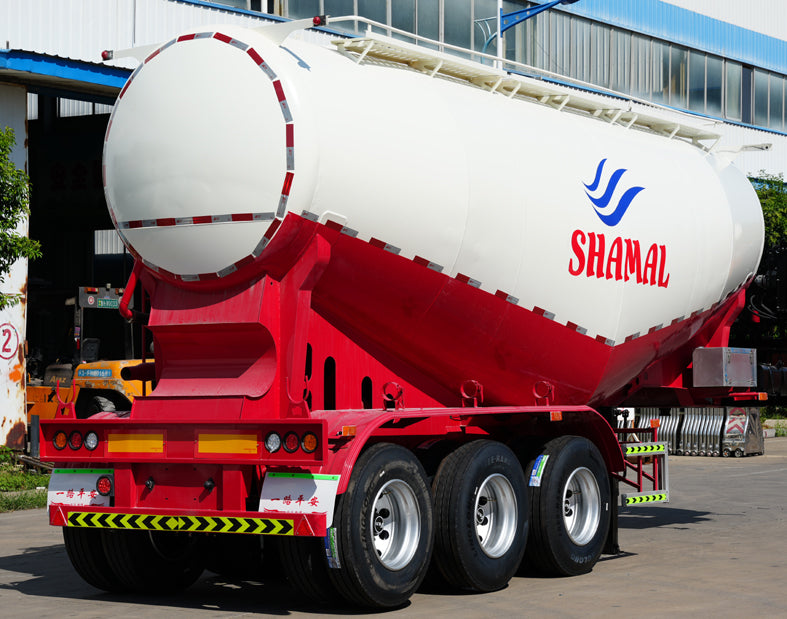

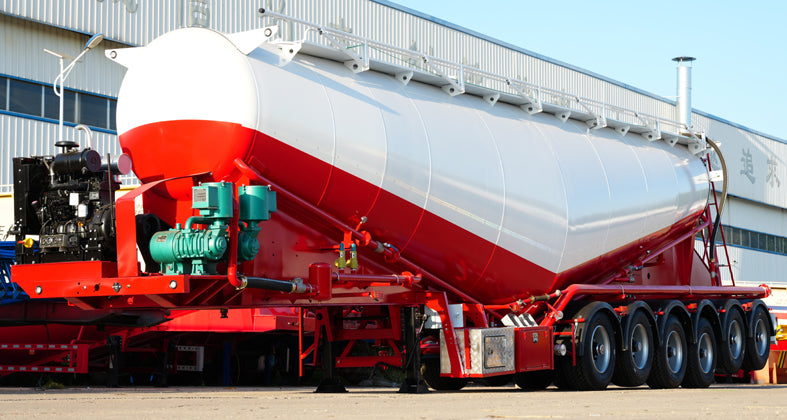

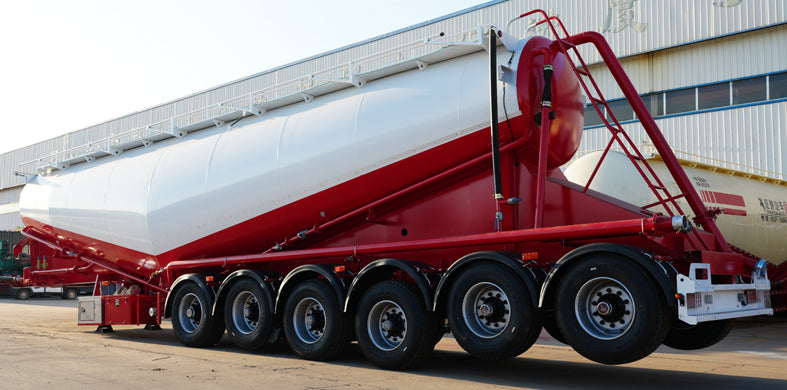

Medium density powder material transportation semi-trailer

Dimensions: 1070010000 × 2550 × 38504000.

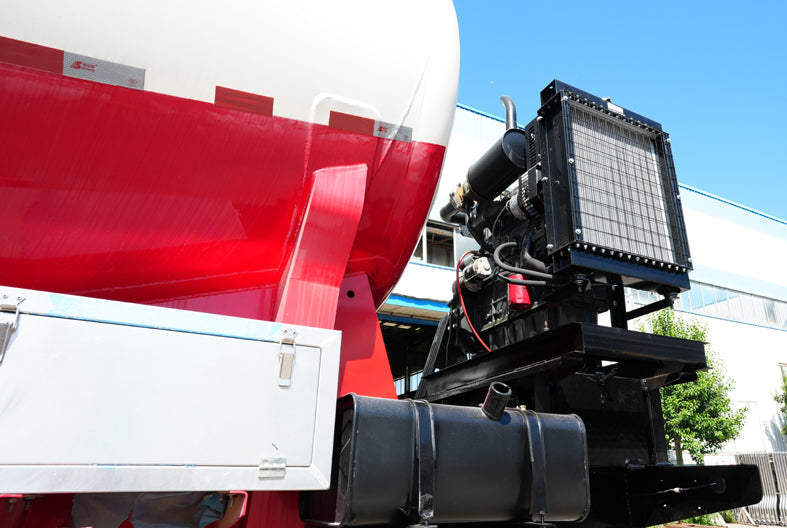

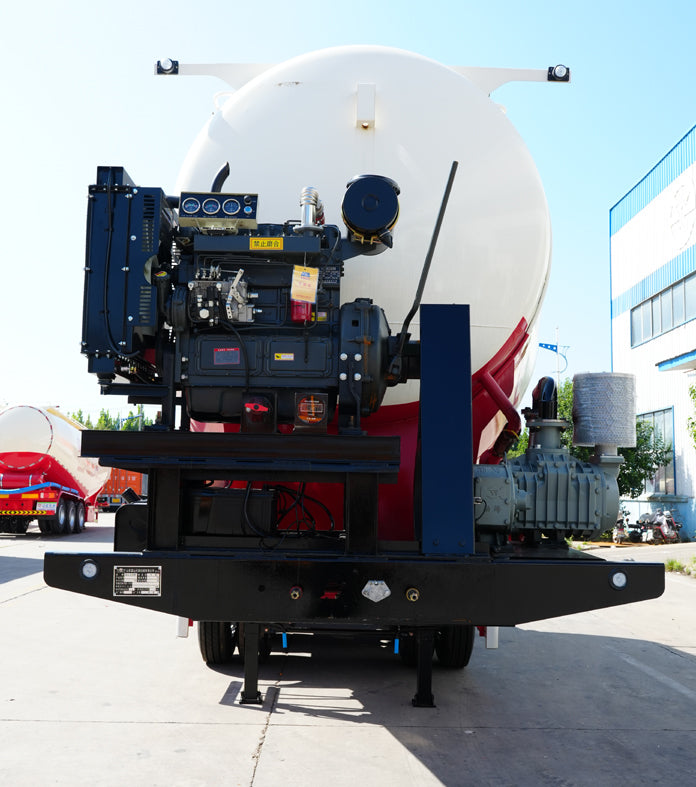

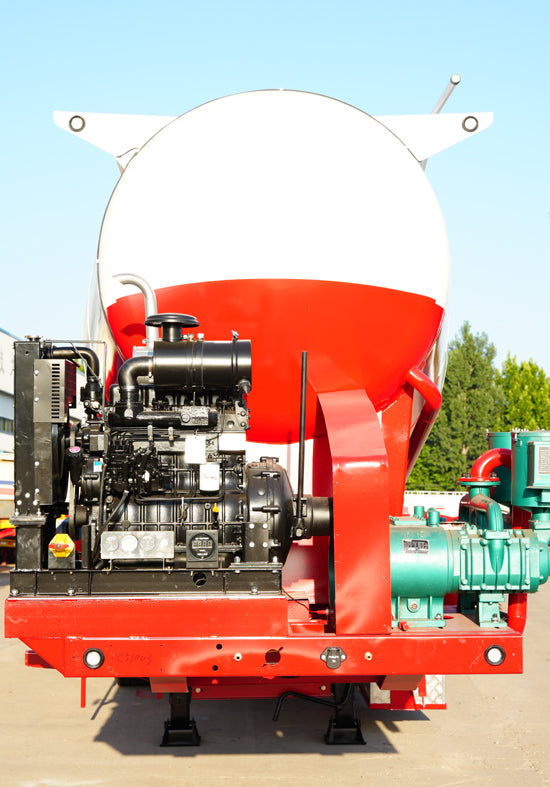

Transport fly ash with a density of 720 kg/cubic meter, total tank capacity of 45 cubic meters, and effective tank capacity of 42.9 cubic meters. The optional top platform structure varies, resulting in different vehicle heights The total length of the tank body of the vehicle is 9850mm, with a maximum cross-sectional width of 2540mm; the minimum diameter is 2008mm, and the overall length of the vehicle without an air compressor unit is 10000mm. The curb weight is 8400kg, and front and rear structures are optional; Optional without air compressor structure; Optional appearance structure; Optional wheel cover style; Number and installation location of optional climbing stairs; Optional tank front and rear intake duct types: one pipe, two pipes, internal pipe; Optional pneumatic and hydraulic support legs; Optional longitudinal beam front and rear structures; Optional power unit type, optional tank body text; Optional body color, optional beam shaped hole structure, optional installation position of tail sign plate, optional tire guard tile style and track style, optional combination light is circular/fog light is square structure, ABS: model: CM2XL-4S/2K (4S/2M); Manufacturer: Guangzhou Kemi Automotive Brake Technology Development Co., Ltd; Protection: The material of the side/rear protective device is Q235, and the connection method is bolt connection for the side lower protective device/welding connection for the rear lower protective device; The cross-sectional dimensions of the rear protective device are 140mm in height, 50mm in width, and 460mm above the ground. The dimensions correspond one-to-one.






1、 Technical core advantages


lightweight design


Aluminum alloy/high-strength steel hybrid structure, with a weight reduction of 20% compared to traditional models (such as a 40 ton model with a weight reduction of about 7 tons)

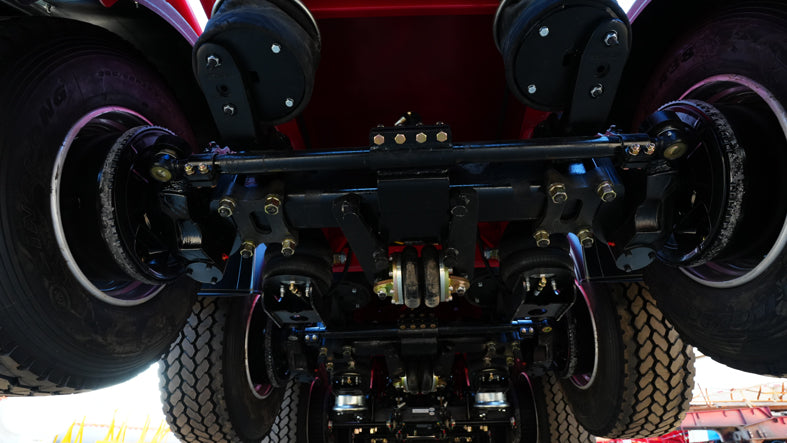

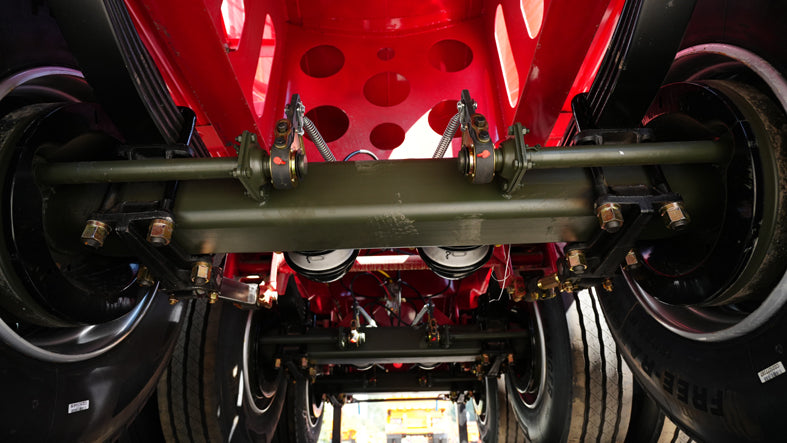

Air suspension system+lightweight axle, suitable for standard load transportation


Efficient loading and unloading


Pneumatic unloading system: unloading speed up to 2-3 cubic meters per minute


The tank body is made of 5mm Baosteel wear-resistant steel, and the internal fluidized bed design is anti caking


Standard electric push rod tarpaulin, dust-proof and splash proof


intelligent monitoring


Standard tire pressure monitoring+temperature sensor


Optional GPS positioning+remote transmission of unloading data






2、 Performance parameter comparison


Vehicle volume range, load range, unloading method


Standard 32-45 cubic meters 25-40 tons pneumatic/hydraulic dump truck


Lightweight 38-50 cubic meters 28-42 tons gravity dump truck






3、 Adaptation scenario


Transportation of building materials: 38 cubic meters of tank+wear-resistant coating


Chemical raw material distribution: stainless steel liner+anti-static device


Mining/Sand Field: Dual Warehouse Design+Large Angle Self dumping Function






4、 Economic indicators


Load ratio of 1:5.7 (such as a 7-ton vehicle with a load capacity of 40 tons)


The fuel consumption per 100 kilometers is 15% lower than that of a regular box car


The 3-year residual value rate is about 70%
